MaaTec Network Analyzer

New Network Analyzer Version 1.80 (Nov 2010)

The MaaTec Network Analyzer is a tool that allows to capture, save, and analyze network traffic on a LAN or a DSL internet connection. You can use it for network troubleshooting, to analyze an existing network infrastructure, or for long-term network monitoring. The Network Analyzer combines following major components in one application:

bullet Protocol Analyzer (or 'packet sniffer') with real-time display
bullet Real-Time Statistics (displayed in tables with sortable columns)
bullet Scheduled Collection of protocol data into one or more files (Pro Version)
bullet Network Load over Time Statistics (per system, protocol, connection, etc.) (Pro Version)
bullet Network Report Generator (Pro Version)

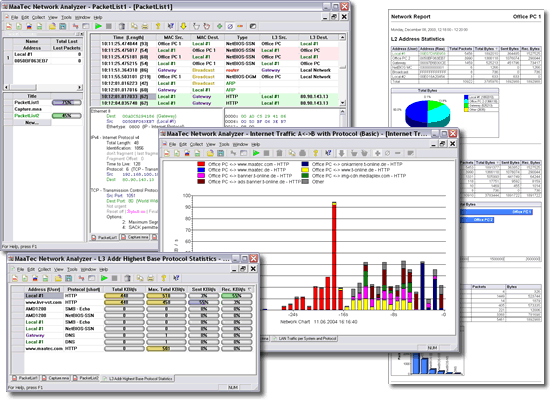

Click on the pictures to open full size screenshots or a demo network report that was created with the application's report generator.

Network Analyzer Images Statistics Statistics with History Packet List Demo Report

Network Analyzer Feature Highlights

  • Click here for a version history
  • New: The VLAN ID filter and VLAN statistics allow an even better analysis of virtual local area networks.
  • Support for Windows® Vista operating systems including 64-bit versions.
  • Scheduled Collector in the Pro version that allows manual or scheduled direct to disk packet capturing.
  • Support for files that are larger than 2 GB.
  • Network load over time statistics with history and configurable chart types, display for example the top 9 traffic causers (systems, protocols, etc.) during a configurable period of time in a clear stacked bar chart.
  • Punycode support in the DNS decoder, address database update via DHCP, new connection statistics, new optional 'Easy Statistics Mode' that displays only commonly used statistics modules with better understandable names.
  • Network Reports in HTML or XHTML format.
  • Reports with charts and multiple data tables.
  • Report generation can be controlled with command-line options and can be started in the background with the Windows® Task Scheduler.
  • Real-time network traffic statistics (25 different statistics modules available).
  • Scheduled network traffic reports.
  • Award-winning help system RoboHelp Award
  • Online view of incoming packets (Analyze, decode, and filter network packets while data collection is running).
  • IPv4 names are resolved by analyzing the incoming name service packets (without additional network traffic).
  • Multiple data color options (for data source, address names, protocol names, and background color)
  • Easy to use filter dialog.
  • Supports multiple network cards in one or multiple windows.
  • High performance due to assembler optimization and genuine new filter design.
  • Open multiple views with different filters and online packet display without performance degradation.
  • Capture full-speed 100 MBit/s even with older systems without losing data.
  • Unique new packet information display in splitted window.
  • Dump packet information with different detail levels.
  • Boot-free and Setup-free installation possible (just copy and start).
  • Customizable columns and display of relative time and lower layer protocols in the packet list view.
  • Advanced ISO OSI decoders.

System Requirements

32-bit Windows® 98 / ME / NT 4 / 2000 / XP / 2003 / Vista / 2008 / Windows 7,
64-bit Windows® XP / 2003 / Vista / 2008 / Windows 7,
486-compatible processor,
400 MHz processor for 100 MBit LANs recommended,
32 MB of free RAM when the OS is running,
MS HTML Help and IE 4 needed to use the help file.

Decoded Network Protocols

IPv4, IPv6, TCP, UDP, IPX, PPP, PPPoE, PPTP, ICMP, ICMPv6, IGMP, LCP, CHAP, CCP, CBCP, ARP, RIP, IPX-RIP, DNS, DHCP, GRE, bootpc, bootps, NetBIOS, NetBIOS-NS, LLMNR, SMB/CIFS, Microsoft-DS, NMPI, LLC, ITU-T X.233 CLNP, X.224 OSI TP, ISO 9542 ES-IS, ISO 10589 IS-IS, Telnet, TFTP, Teredo.

And as text-decode: HTTP, FTP, POP2, POP3, IMAP, IMAP3, MSNP, NNTP, SMTP, SSDP, WS-Discovery, ICSLAP.
